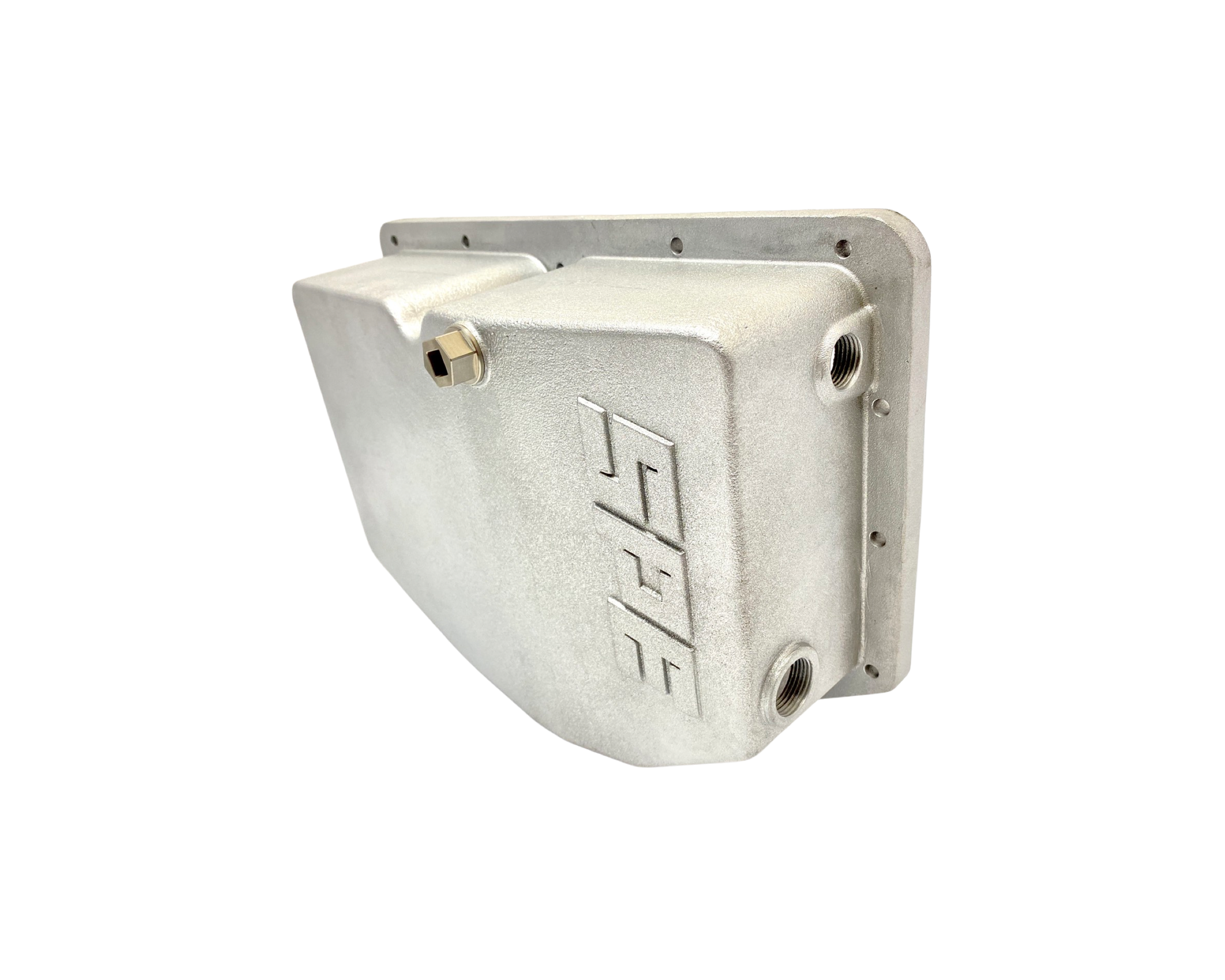

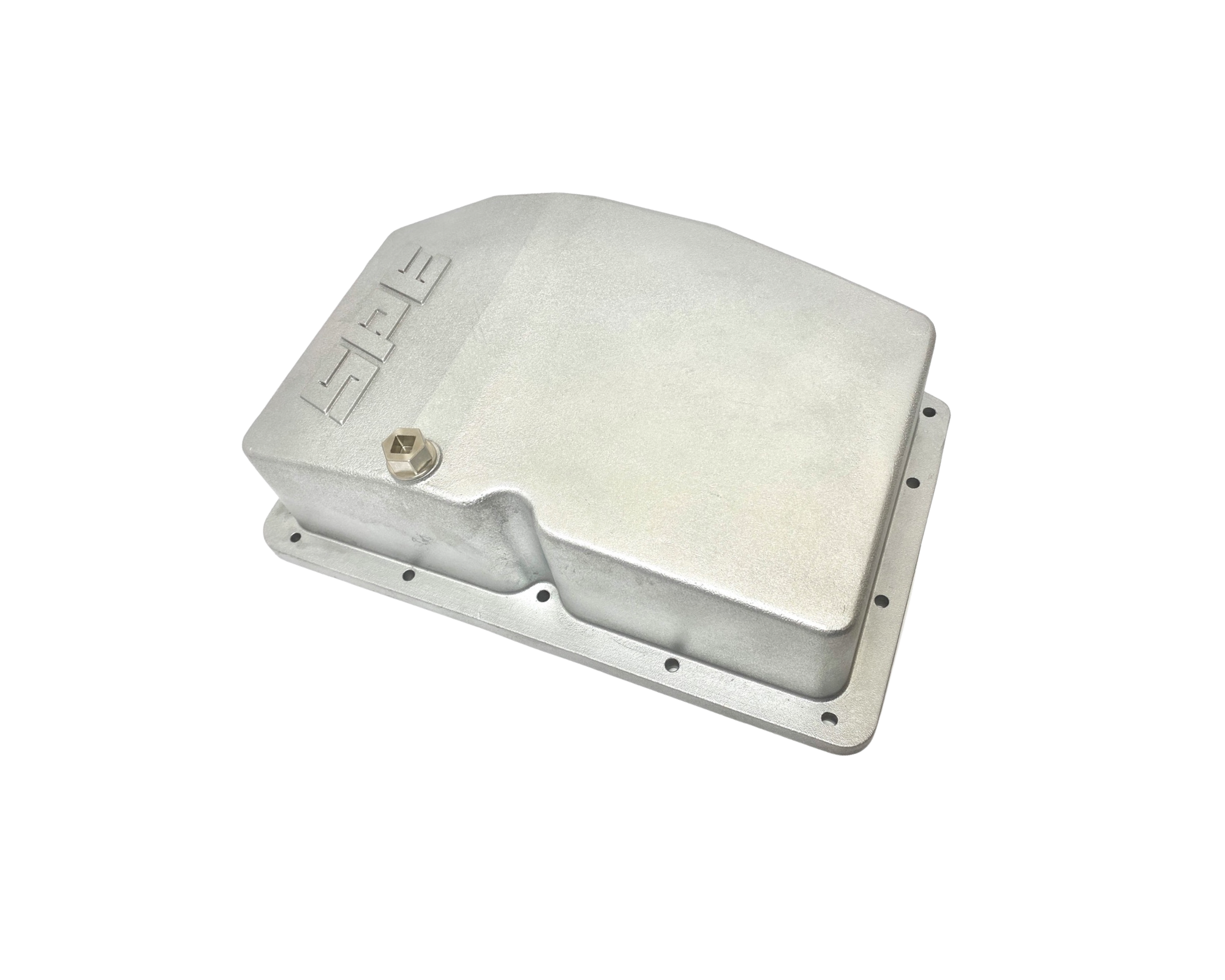

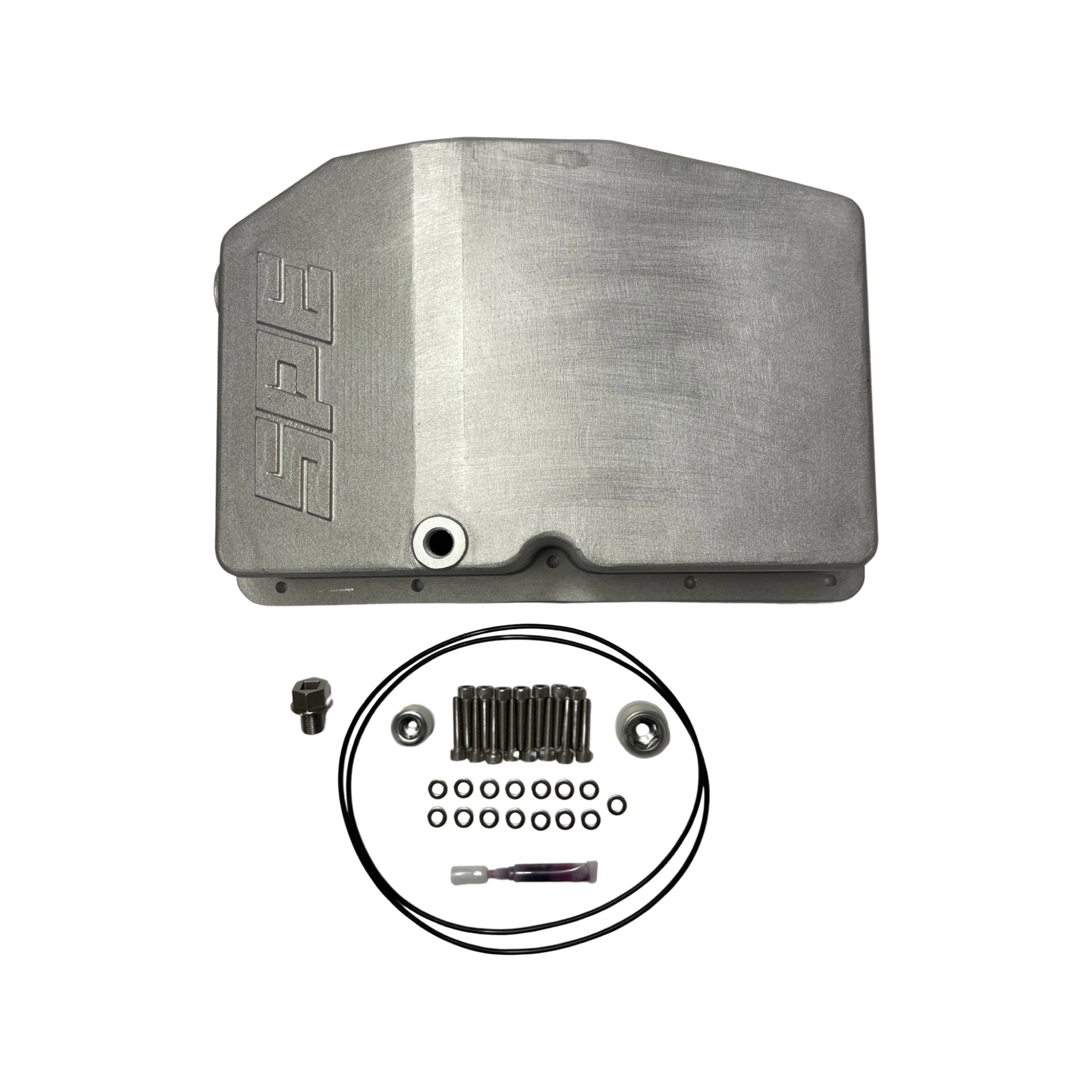

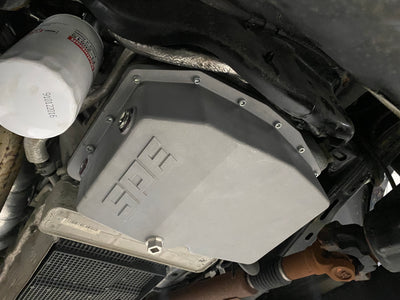

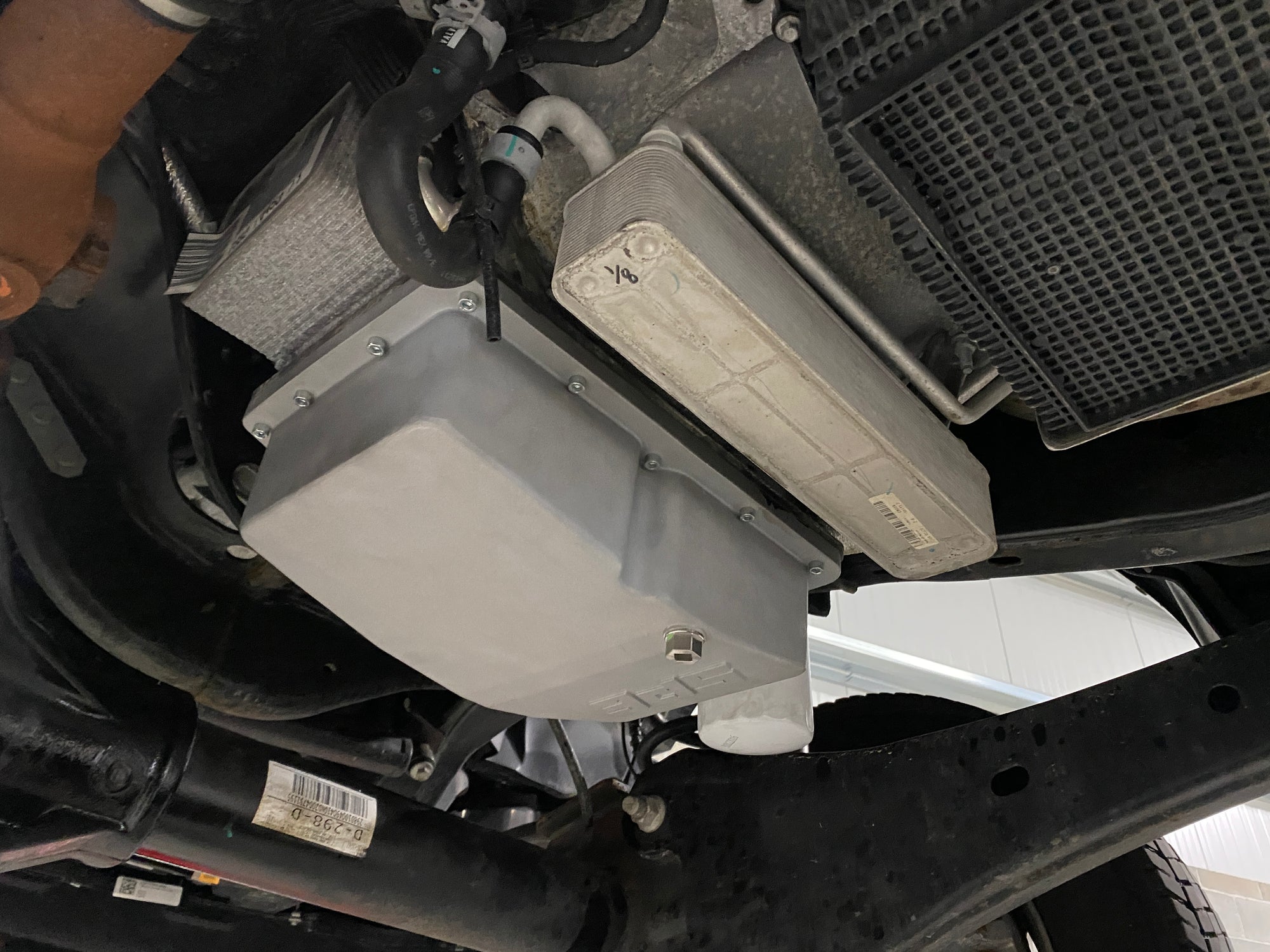

The SPE 6.7L Powerstroke Oil Pan is a cast aluminum pan that was not only designed as a direct factory replacement but features a vast amount of improvements & upgrades.
Made from high-grade 356-T6 Cast Aluminum

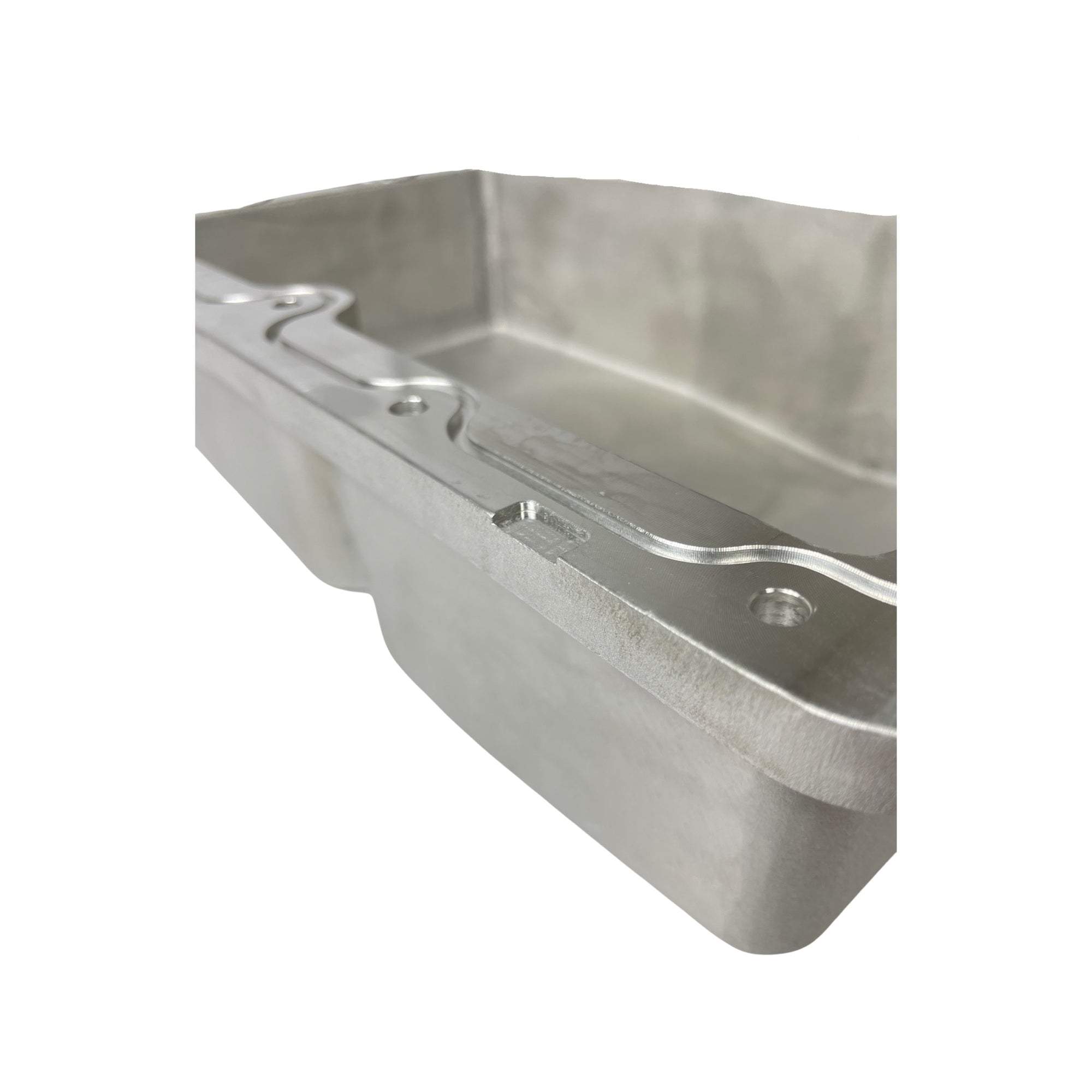

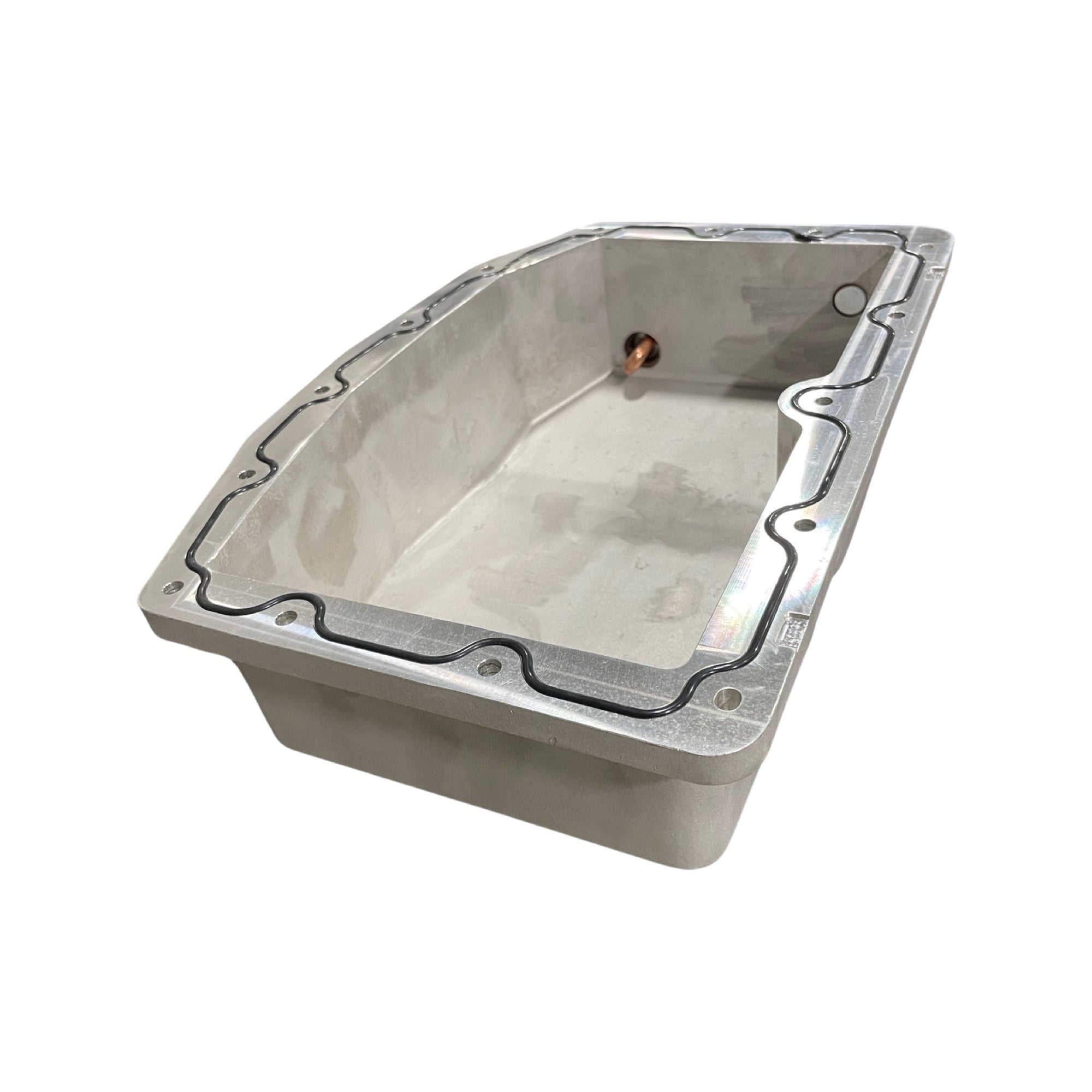

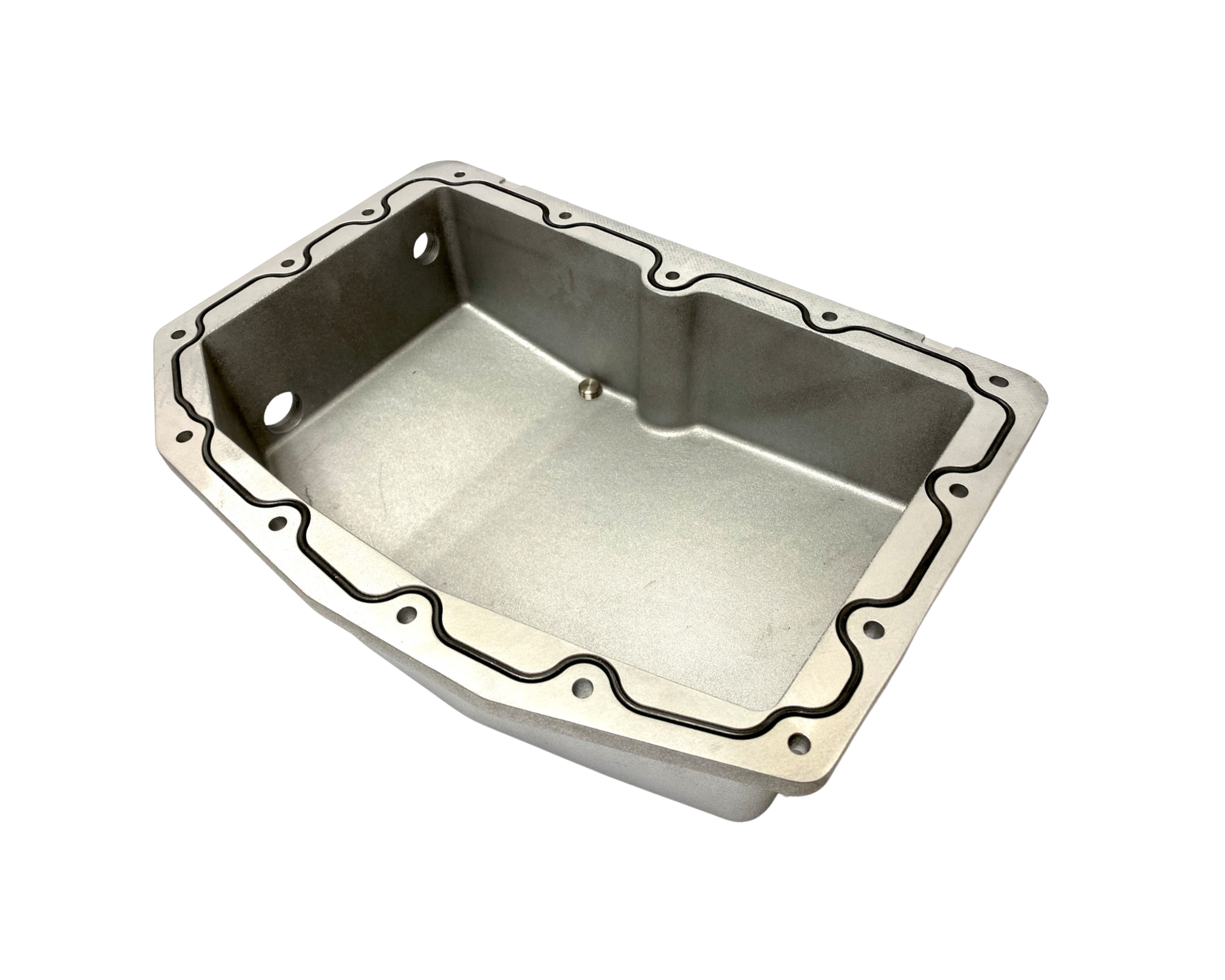

Built-in O-ring Seal— no silicone or factory gasket used
Pry tab— Allows foreasier removal

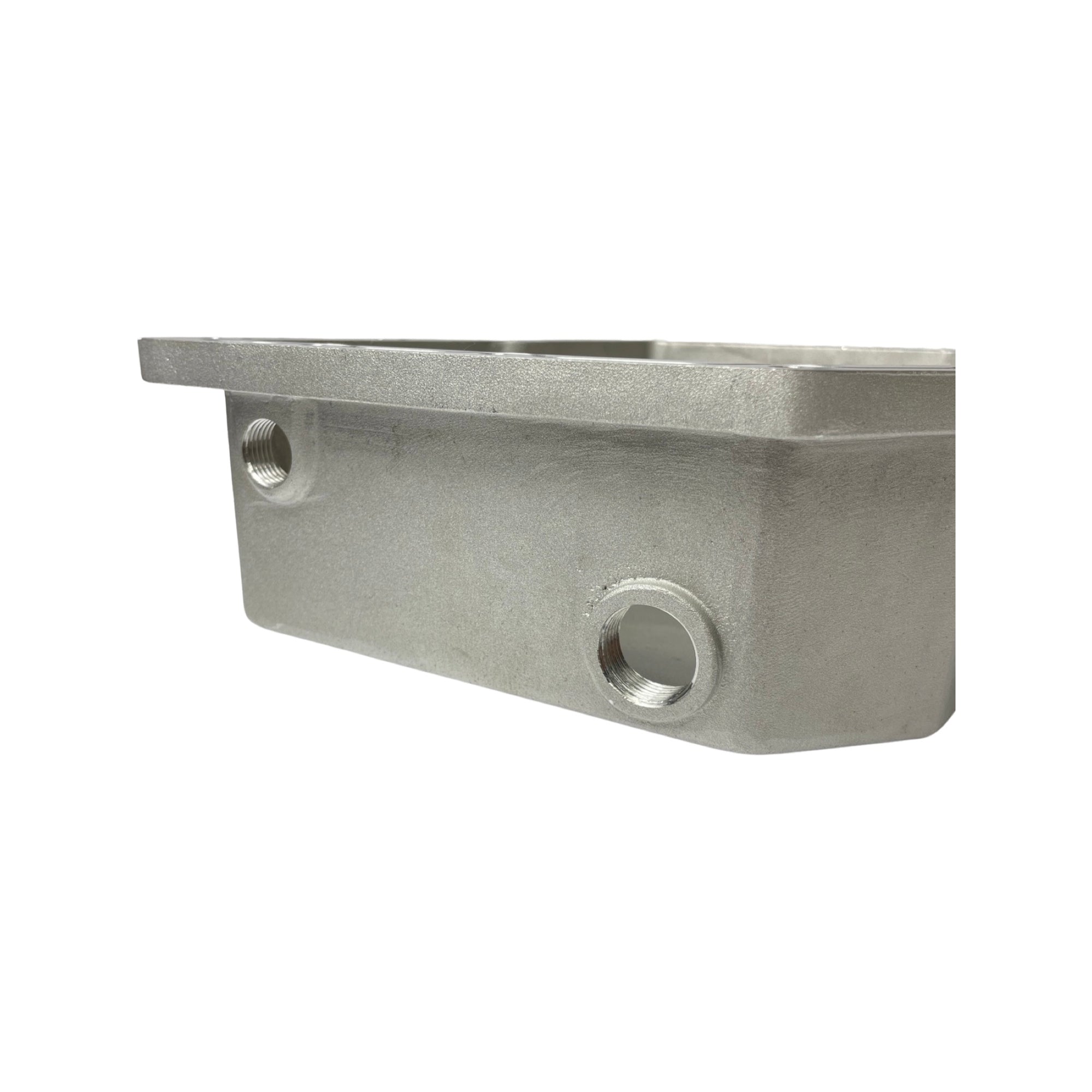

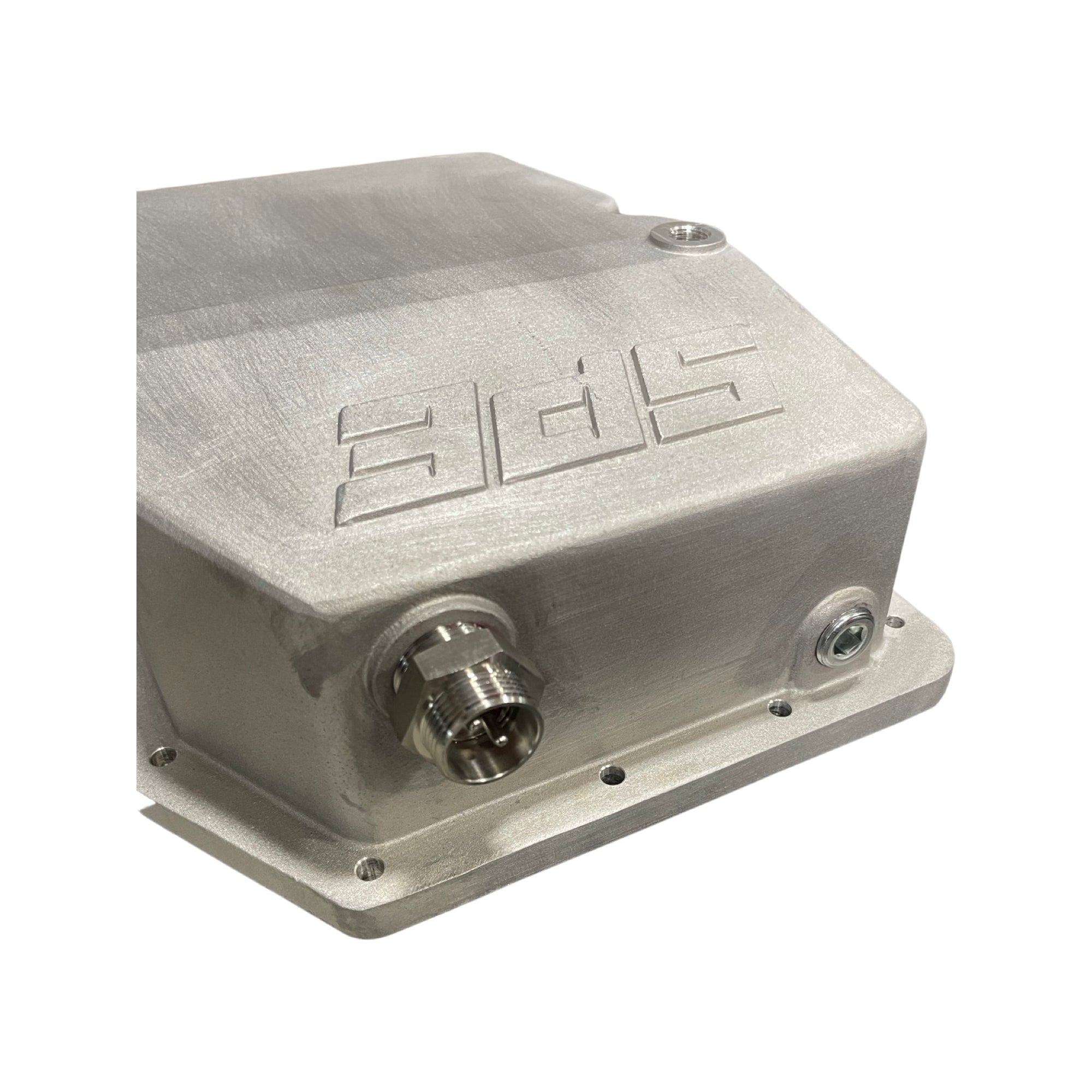

Drain back for add-on turbocharger upgrades—plugged when not in use

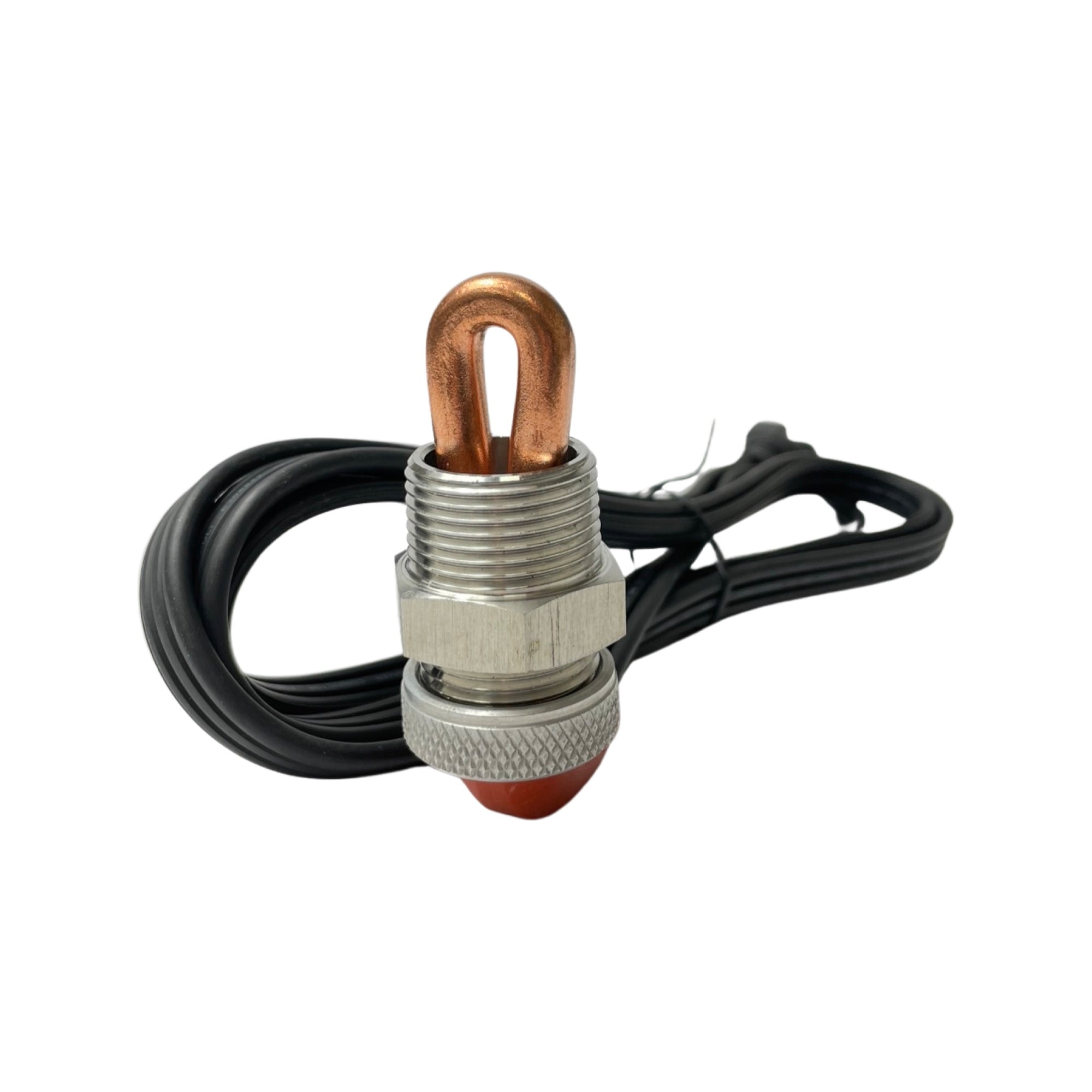

Optional heater upgrade kit— Great for cold climates*

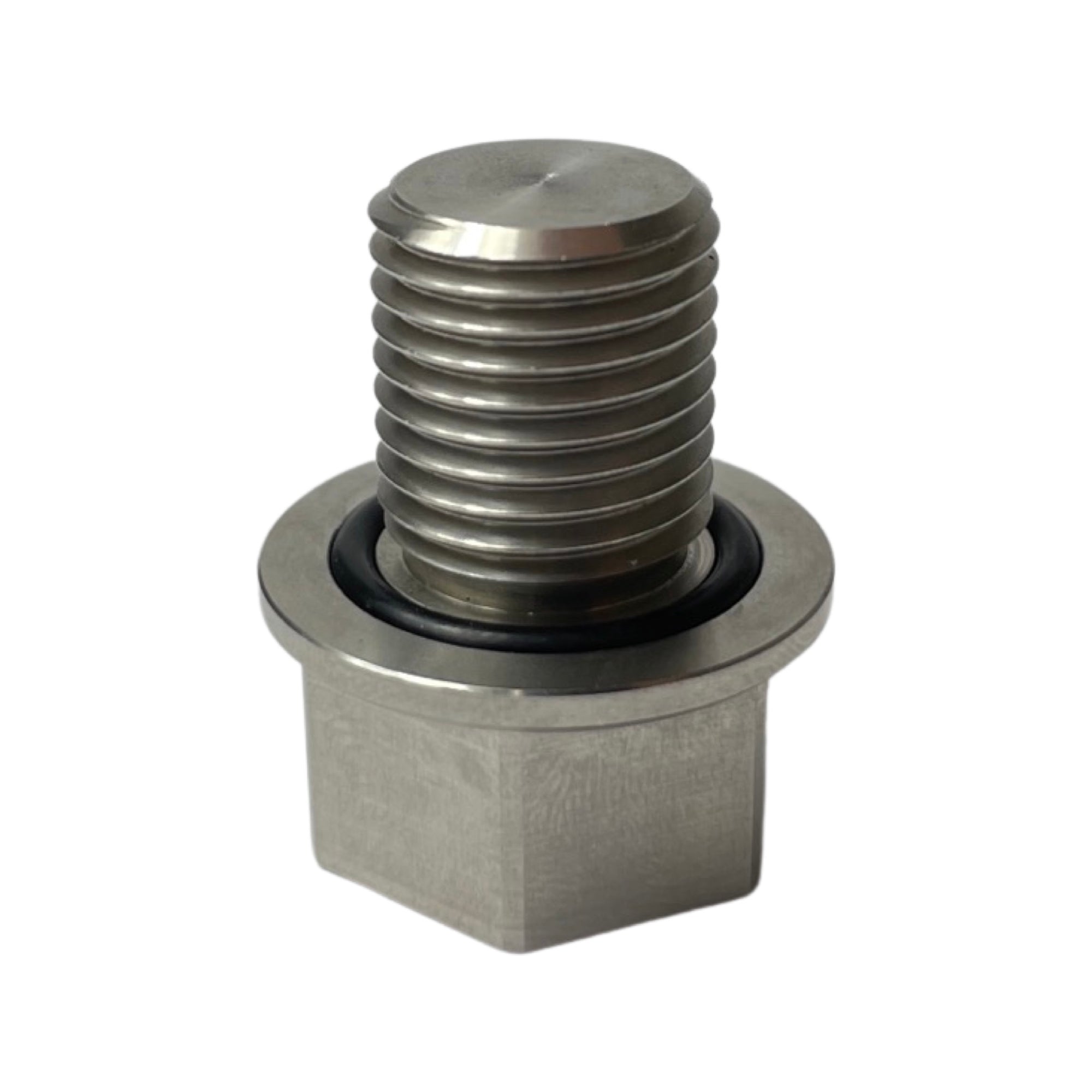

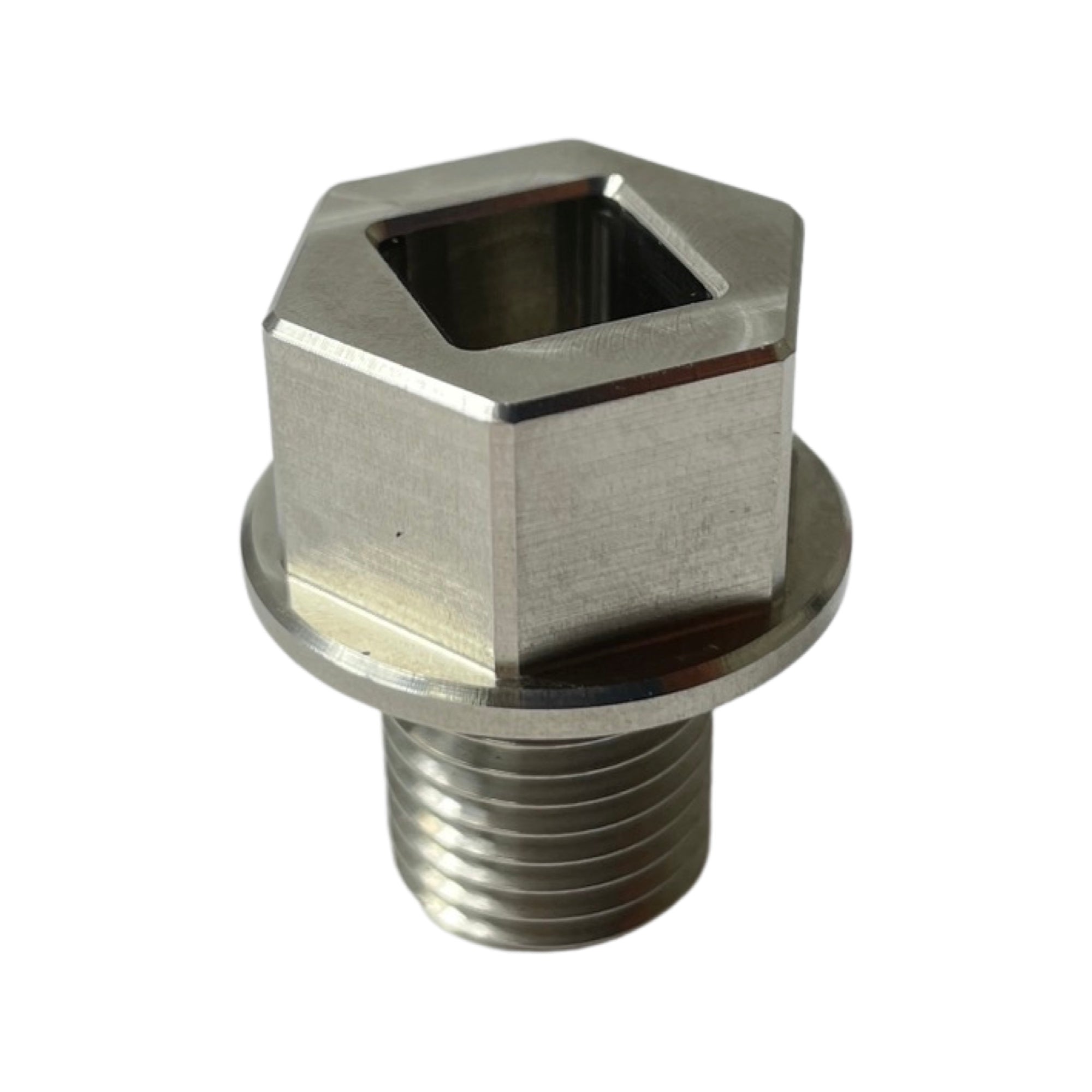

Factory drain plug thread

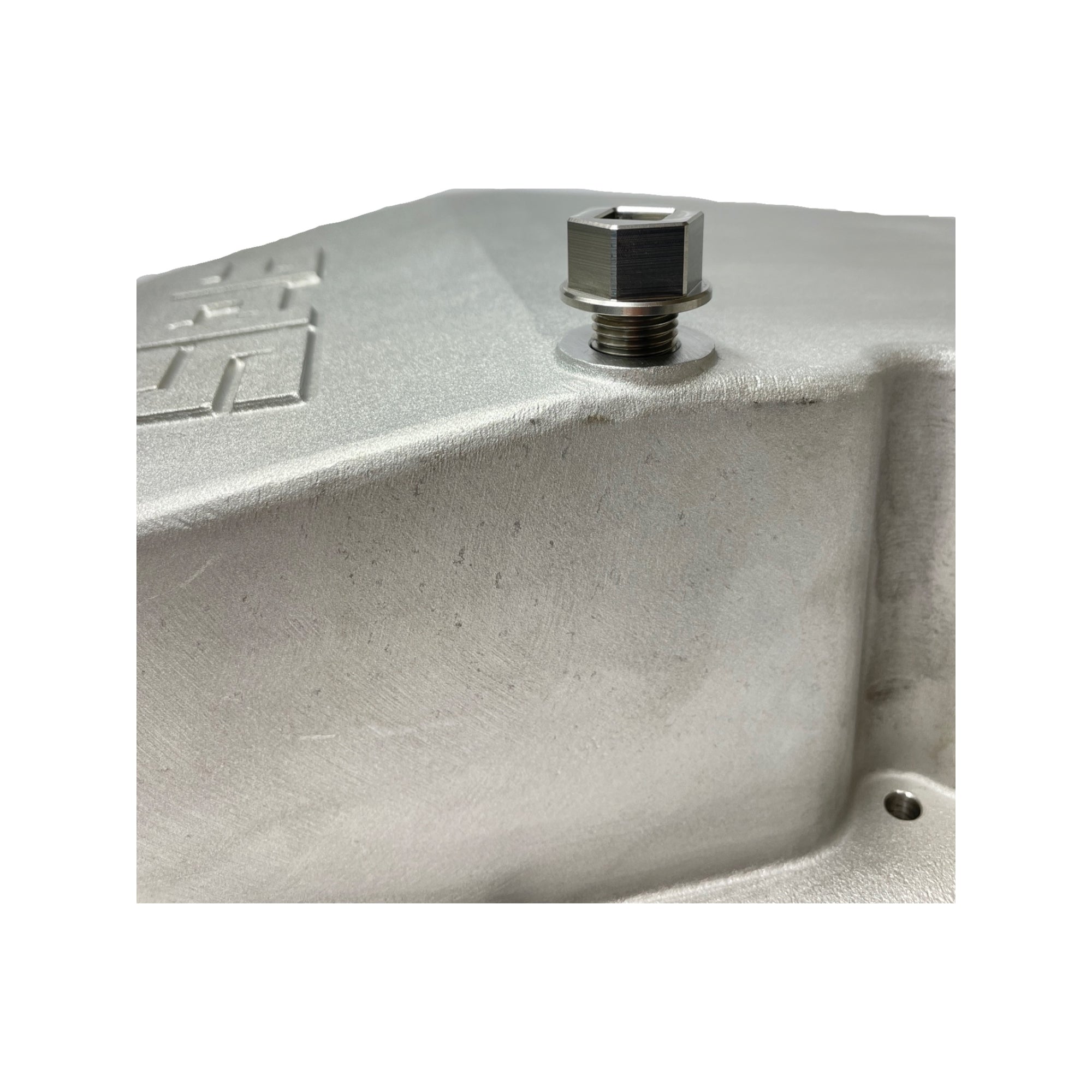

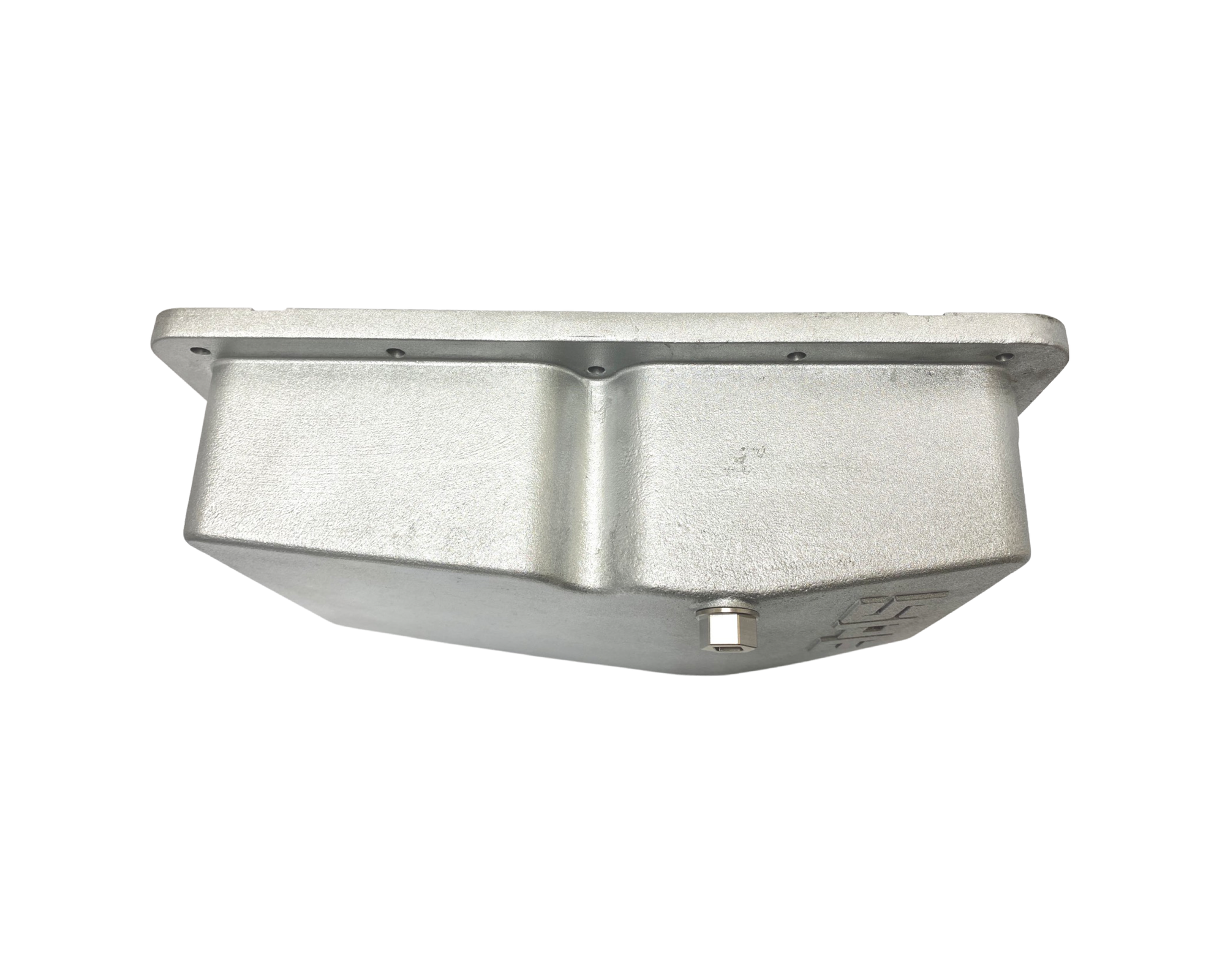

Pan is sumped/tapered—no residual oil left in the pan after an oil change
Increases capacity to 16qt—An additional 3 qts over factory

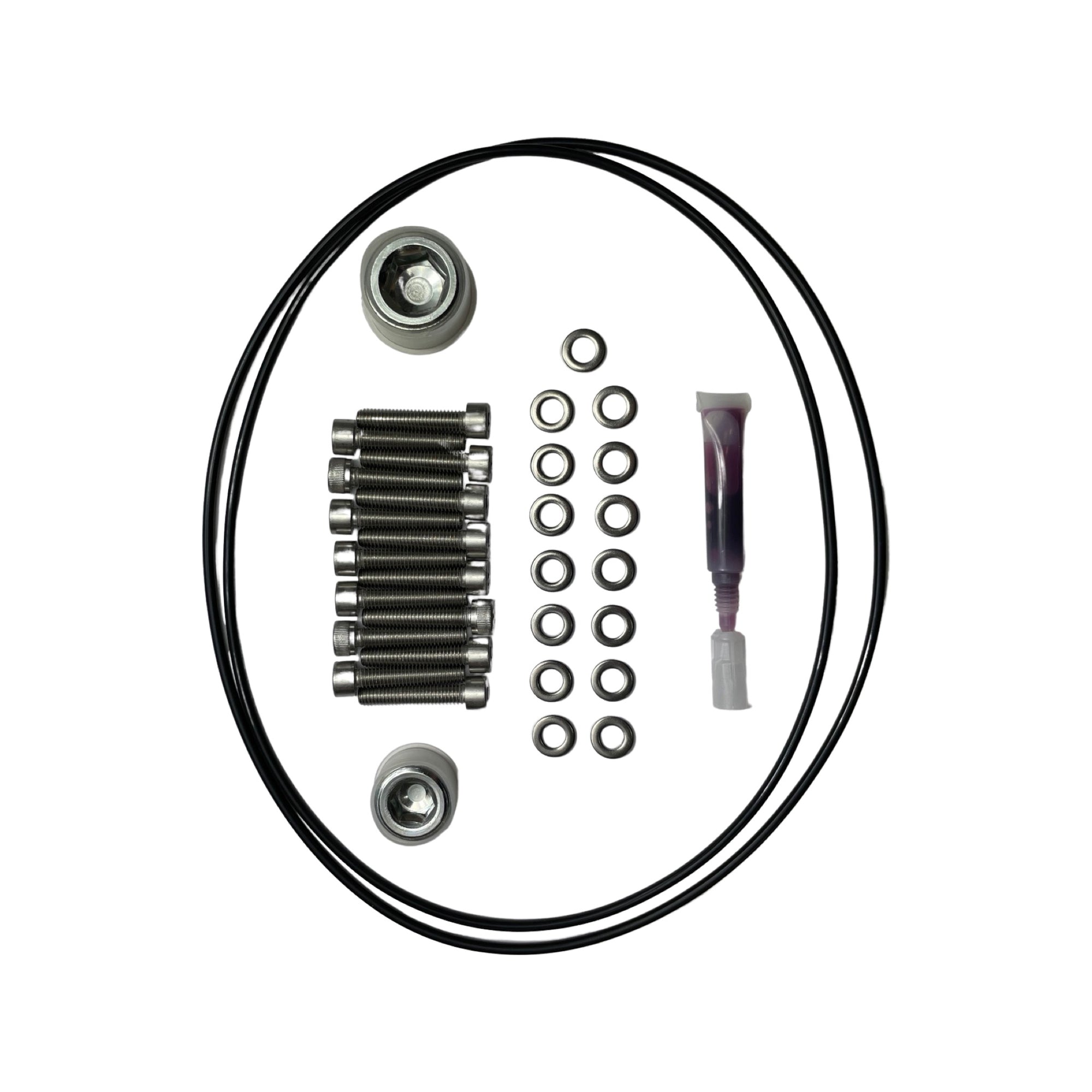

Includes plugs & thread sealant
NEXT LEVEL DESIGN
During the design process, the SPE team looked at all of the downfalls with not only the 2 factory options (earlier composite pan & the later stamped steel version) but also looked at aftermarket options as well. Additionally, it was important to make it easy to install, easy to remove, & completely drain. That is why the pan features a built-in o-ring, a machined pry provision slot for easy removal, and sumped/tapered drain to allow for complete emptying of the oil. It also has a factory drain plug thread, so you can use whatever drain plug you prefer, whether it’s the factory option, an aftermarket option, or theSPE Billet Drain Plug Aside from the sheer installation & removal aspects, the SPE design team took it a step further and looked at what added features the customers would like to see. As a performance oriented manufacturer, it was a no-brainer to add a drain back for an atmospheric turbo. This eliminates the need to drill into your pan when doing compounds, etc. and when not in use, a ½” NPT plug is included. We didn’t forget about our cold weather folks either, so we added a provision for an optional heater upgrade should you be in a climate where freezing temperatures can create issues with oil viscosity and decreased oil circulation and lubricity.
Lastly, the SPE oil pan increases the overall oil capacity to 16 quarts which is an additional 3 quarts over stock.
Overall this is a really good upgrade for anyone looking for easier installation & removal, complete oil drainage, someone running (or considering running) an add-on turbocharger, or someone in a cold climate* where adding the oil heater is essential to optimal performance.
2011- 2023 Ford F250 (including cab & chassis)
2011- 2023 Ford F350 (including cab & chassis)
2011- 2023 Ford F450 (including cab & chassis)
2011- 2023 Ford F550 (including cab & chassis)
*SPE considers a cold climate anywhere you may see temperatures consistently below 15°F.
Can’t beat it! If you have the time & money DO IT!
Perfect fit and looks great. Had it powder coated to protect it and installed easily.
Everything went good, just take your time installing the o-ring seal on the pan. This will be very helpful having the sump and the drain plug facing down when I change oil.
Great product only issue I had is I was sent the wrong plug so install got put on hold half way into it
Love the extra oil capacity
Shipping was fast with constant updates that were very thorough. The oil pan looks very well made and came with all the necessary parts for the installation. I'm going to install on my next oil change.
When I saw this pan on ARod's Powerstroke Tech Talk youtube channel doing an install, I had to drag out my credit card. Absolutely the best pan on the market for a 6.7L Powerstroke. Now, let's make one for the 10R140 transmission. Thanks SPE!
It went on nice and easy. Looks great and now I hope it keeps the oil temp a little cooler.
Very well built product from a company that has very fast and good communication. Love the extra oil capacity
Another quality product .
Fit was perfect.
Take your time and work the seal back on itself. A lot of thought went into design.
Always happy with SPE.
Super fast shipping and the quality was excellent. It fit like a glove and the added oil is always a plus . Looks great with my SPE cat oil filter kit.
Super simple install!
And who doesn’t want more oil!
Great product from SPE. Extra oil capacity and the ability to drain all of the oil unlike the original pan is a huge benefit.
As usual another quality product from SPE
Love it! Truck runs better!
Will be purchasing more.
Great customer service and followups from order to delivery.
Great pan love spe products
Fast shipping, great parts, adds capacity and helps with oil temps.
Exactly what’s described. Very nice product. I ordered it Thursday and it was on my truck the following day to compliment the new compound turbo set up. Fantastic shipping I chose standard shipping and it was at my door the next day around noon.
I now have the fuel filter kit and upgraded oil filter and upgraded SPE oil pan. I have a 2019 F350 and really wish I did these upgrades sooner. I have over 280,000 miles on my long bed and could possibly have paid for this upgrade in reduced oil changes. Definitely I believe I would have had better oil flow temperatures going across the Mojave in August. I believe I increased my trucks performance with each upgrade I’ve done. From Hot and Cold pipes to fuel & oil kit upgrades. I’m so glad I checked out Cory’s YouTube video and discovered SPE. I can’t say enough about the great support team at Snyder Performance. I highly recommend SPE upgrades.
The pan is robust and well made. I am very happy with the consideration that went into the design. I had the pan Cerakoted for a more finished look and also did the filter upgrade. Overall very satisfied, thanks for the products!
Excellent product, fit perfectly. This is going to do exactly what I was hoping for. Complete drain of old oil from the pan. Had it powder coated prior to installation, and made it look even better. Torque specs would have been nice for installation. Snyder has many great products for the power stroke, can’t wait to add more. Thanks, SPE!
Well made and love how it will now empty the pan and not leave old oil. One issue I have with it is that I didn’t see an additional 3 quart over stock capacity. I assumed I would get 4 gallons in on my 2017 and got only about 3.5……so one quart over stock.
Amazing product as always this is the 2nd one I have installed along with the oil filter housing!!
High quality parts ! Love ur business glad yall are here for the powerstroke world. Definitely recommend this oil pan.
Awesome fit and finish, made the compound drain solution very easy!, and the extra volume is plus, as well as being able to drain it all!
Far superior to the OE oil pan. Was negatively amazed at the amount of oil remaining in the OE pan at each oil change. SPE has totally resolved that resulting in superior engine maintenance and operation. Thanks SPE, your products are top tier. I added a Fumoto drain valve. Hello less mess oil changes.
Great product, easy install. Excited for the rest of my SPE installations!
Snyder Performance has some of the best customer service I’ve had.
I recently ordered something from “another company”on the Thursday before New Years. I understand that it is a holiday and with all the Christmas shipping it might take a little longer to get my order shipped. However on the following Wednesday I still saw no action concerning my order. When I called the company and I got a mechanical recording that told me to leave a message. I also sent an email and later received a very terse response that my order had been prepared for shipping and they had been out for the holidays. Had they left a message on their voicemail that no orders would be processed during the holidays I would have know to expect my order later.
On the other hand Snyder Performance has been on the ball from the minute I placed my order. I have gotten emails and texts walking me through where my order was from the beginning. Great company and great customer service and the oil pan replacement for my Ford F350 works great. Big improvement.
Great product, excellent quality, happy with how it turned out. Looking foward to combating more Canadain -30 Celsius weather with this addition to the truck.
This oil pan has some heft to it. Doesn't hang too low even on my 22. Love having the drain plug on the bottom instead of the side and the ability to add a heater. However, I tried many different strategies for getting the o-ring to fit but it was just too big. Ended up cutting about an inch and a half. Despite cutting the o-ring it doesn't seem to be leaking at all so can't complain too much.
Decided to buy this after seeing how much oil is left in the stock pan when you drain it. This pan is really nice with the o ring instead of a gasket and the drain plug is at the bottom of the sump so ALL the oil drains. The thick flanges and extra ports are all bonuses. Had mine powder coated. Looks great. Can't wait to put all my other SPE parts on.
Just got it back from coating today and planning to install it at next service. Looks even better than I could’ve hoped and everything in the kit is as immaculate as I’ve come to expect from SPE. Another amazing product.
This oil pan with extra capacity is a great design and is much stronger than the stock steel pan from the factory. I have not installed it yet, as I am going to have it powder coat first along with my pipes that came with SPE Air Intake Kit. Will post pictures later. Another great product form SPE! Keep em' coming..........
New oil pan is awesome, adds 3 more quarts. Got the spe oil plug and the heater plug. Oil plug threads great. The heater plug has a really small coil. Only goes in the pan 1-2”. Started my truck this morning 13 degrees outside and the oil was 37. Expected it to be hotter like 70-80 but it did warm up to 80 degrees in 5 minutes. I’m satisfied just think of the coil was 6+ inches it would keep the oil warmer.
